mk2 Scirocco CD player install.....help!

Post by captain.spaulding50 » Tue Aug 02, 2011 11:31 am

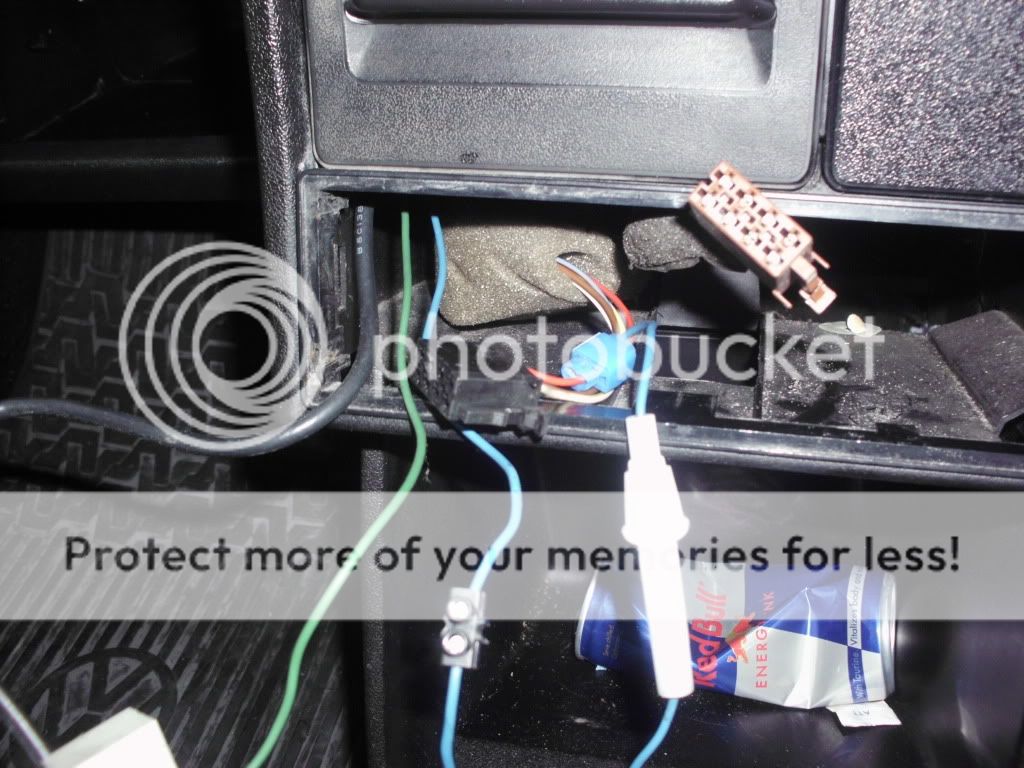

Hi guys, just got my 'rocco at the weekend drove it home from North Wales to Northumberland and had loads of fun, other than only being able to listen to Radio 1! Anyway I went to install my sony head unit this morning - never thinking about the electric aerial, so basically I'm stuck I have no idea what wires go where and was wondering if someone could point me in the right direction. Here's some pics of what I'm left with after taking the cassette player out and the sony's wiring. any help will be much appreciated. Thanks. Steven

http://s991.photobucket.com/albums/af34 ... iddle1984/



the edmundator
Posts:2928
Joined:Wed Apr 01, 2009 7:34 pm
fill in the right answer:10
Location:BEDFORD

Re: mk2 Scirocco CD player install.....help!

Post by the edmundator » Tue Aug 02, 2011 12:30 pm


The black and brown blocks are ISO connectors and should plug directly into most modern head units. You might need a harness to go between ISO and the Sony unit if these don't plug directly into the back. Autoleads are the most easily found manufacturer of these sorts of things - you can buy them from Halfords, any car audio retailer or online (eBay etc).

You shouldn't really need to do any wiring if the person who fitted these in the first place did it right.


Register Member 829
--
1980 (1976) Mk1 Junior Cup Replica
1987 MK2 GTX

captain.spaulding50
Posts:14
Joined:Sat Jul 30, 2011 11:00 pm

Re: mk2 Scirocco CD player install.....help!

Post by captain.spaulding50 » Tue Aug 02, 2011 1:47 pm

Yo, cheers for the speedy reply, being in a bit of hurry earlier I forgot to mention, that the sony head unit came with a harness that does fit directly into the iso connectors, so I plug them in, turned on the ignition and........nothing no power to the head unit, I was wondering because of the electric aerial if i would have to join a wire from the harness into the car's wiring, there is a light blue wire on the harness labelled ATT? I'm just baffled by this as I've never had a car with an electrical aerial. Cheers



the edmundator
Posts:2928
Joined:Wed Apr 01, 2009 7:34 pm
fill in the right answer:10
Location:BEDFORD

Re: mk2 Scirocco CD player install.....help!

Post by the edmundator » Tue Aug 02, 2011 4:29 pm

Are you using a loom from the back of the Sony to the ISO connectors? I guess you probably are.

Scirocco radios are generally wired up with a permanent live (i.e. they work whether or not the ignition is on).

Your Sony loom will have a switched (usually yellow) and permanent (red) live feed. On most of these looms there are accessory wires so that you can plug the switched live into the permanent live circuit - you need to do this to get it to work. Either that or you'll have to wire in your own switched feed to the ISO connector in your car.


Register Member 829
--
1980 (1976) Mk1 Junior Cup Replica
1987 MK2 GTX

captain.spaulding50
Posts:14
Joined:Sat Jul 30, 2011 11:00 pm

Re: mk2 Scirocco CD player install.....help!

Post by captain.spaulding50 » Tue Aug 02, 2011 11:54 pm

I think I'm with you, the cassette player does operate without the ignition turned on, I shall have another play around in the morning and see if I can sort it out. cheers for the help fella.



ianaudia4
Posts:3800
Joined:Wed Apr 01, 2009 4:35 pm
fill in the right answer:15
Location:Central London and Essex

Re: mk2 Scirocco CD player install.....help!

Post by ianaudia4 » Wed Aug 03, 2011 5:45 pm

What Ed says with the perm live and switched live.
Electric aerials are usually powered by the blue cable off the majority of stereos.

Whereabouts are you in Northumberland, myself and a few others on here have some mini meets in the north east and there is also the Durham Dubs show which we have a club stand on the 10th September?


1984 MK2 Havanna brown Storm
1989 MK2 Alpine white Scala injection
2006 Audi A4 3.0TDI quattro (the beast)

captain.spaulding50
Posts:14
Joined:Sat Jul 30, 2011 11:00 pm

Re: mk2 Scirocco CD player install.....help!

Post by captain.spaulding50 » Wed Aug 03, 2011 8:42 pm

Yeah, I think you're right, the green wire pictured seems to be connected to a blue wire coming out of the back of the existing head unit, when you take the green wire out of the equation the stereo (and aerial) won't power. I think I've figured it out, not gonna get time til the weekend now so I'll just had to put up with the crap on the radio for a couple more days!

I'm just near Hexham mate, would be up for some meets!



captain.spaulding50
Posts:14
Joined:Sat Jul 30, 2011 11:00 pm

Re: mk2 Scirocco CD player install.....help!

Post by captain.spaulding50 » Sun Aug 07, 2011 10:03 pm

Nightmare..... I managed to get the sony unit to power up, stuck the aerial power cable into the equation and it extended, the realised when I turned the ignition off the head unit was still on and the aerial was still up, I take it i had everything wired into the permanent live?



User avatar
Mr Funk
Posts:2131
Joined:Wed Apr 01, 2009 6:39 pm

Re: mk2 Scirocco CD player install.....help!

Post by Mr Funk » Sun Aug 07, 2011 10:29 pm

Quite posibly. And be aware that it may also be draining the battery


Head of Complaints - Big Pie Cartel
If it sounds like it's naughty, it probably is.

ianaudia4
Posts:3800
Joined:Wed Apr 01, 2009 4:35 pm
fill in the right answer:15
Location:Central London and Essex

Re: mk2 Scirocco CD player install.....help!

Post by ianaudia4 » Mon Aug 08, 2011 12:12 am

It is a perm live unless it has been switched through the ignition. I am planning to be back in the north east at the weekend, I am more than happy to sort it for you mate.


1984 MK2 Havanna brown Storm
1989 MK2 Alpine white Scala injection
2006 Audi A4 3.0TDI quattro (the beast)

captain.spaulding50
Posts:14
Joined:Sat Jul 30, 2011 11:00 pm

Re: mk2 Scirocco CD player install.....help!

Post by captain.spaulding50 » Mon Aug 08, 2011 12:18 am

Yeah I encountered a battery draining with this head unit on a car a few years ago, i just had to switch the red and yellow cable around that time.....if only it were that easy. That would be cool Ian I would really appreciate it cheers.



ianaudia4
Posts:3800
Joined:Wed Apr 01, 2009 4:35 pm
fill in the right answer:15
Location:Central London and Essex

Re: mk2 Scirocco CD player install.....help!

Post by ianaudia4 » Mon Aug 08, 2011 12:20 am

I'll be in touch mate and we''ll arrange something.


1984 MK2 Havanna brown Storm
1989 MK2 Alpine white Scala injection
2006 Audi A4 3.0TDI quattro (the beast)

captain.spaulding50
Posts:14
Joined:Sat Jul 30, 2011 11:00 pm

Re: mk2 Scirocco CD player install.....help!

Post by captain.spaulding50 » Wed Aug 10, 2011 11:27 pm

Sorted, mate of a mate had a look and yup, there was no switched live so he connected me one up and woop woop, all is working!



Jimwise68
Posts:65
Joined:Mon Jul 25, 2011 12:43 am
fill in the right answer:10
Location:Chelmsford, Essex

Re: mk2 Scirocco CD player install.....help!

Post by Jimwise68 » Wed Nov 09, 2011 7:00 pm

Which wire was your switched live?
I have a yellow/white wire but testing it with an electrical tester with ignition on it has no current.


1966 Mustang Convertible
1989 MKII Scirocco GT
2002 Range Rover Vogue
2009 Audi A5 Sportline

ianaudia4
Posts:3800
Joined:Wed Apr 01, 2009 4:35 pm
fill in the right answer:15
Location:Central London and Essex

Re: mk2 Scirocco CD player install.....help!

Post by ianaudia4 » Wed Nov 09, 2011 7:15 pm

Sciroccos didn't leave the factory with a switched live, they had perm live only.
For ease you can take a switched live from the heater switch above the radio.

Does your car have an ISO block or has it been butchered off as so many have these days?


1984 MK2 Havanna brown Storm
1989 MK2 Alpine white Scala injection
2006 Audi A4 3.0TDI quattro (the beast)
